How Does a Mass Flow Meter Work
Quick Answer: A mass flow meter measures mass directly in kg/h, lb/min, or Nm3/h. A Coriolis meter uses tube twisting frequency caused by fluid inertia. A thermal mass meter uses the cooling rate of a heated sensor. This direct mass output removes the need for pressure and temperature compensation.
Mass flow meters matter in flow measurement because many processes need mass, not volume. Here is the thing. Volume changes with pressure and temperature. Mass stays constant. Engineers in oil and gas, chemical, food, and water treatment rely on this direct reading for custody transfer and batch control.
How a Coriolis Mass Flow Meter Works

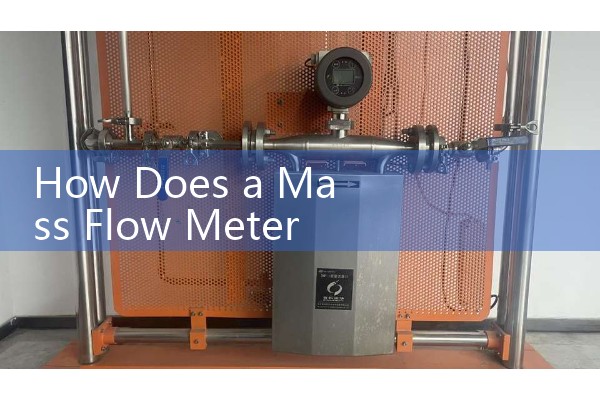

A Coriolis mass flow meter forces fluid through one or two vibrating tubes. The tubes oscillate at a known frequency when empty. When fluid enters, the fluid inertia resists the tube motion. The tube inlet and outlet sections twist at different times. Two sensors measure this time difference. This is the kinetic twisting frequency or phase shift. The meter electronics convert the phase shift into mass flow. The same meter also measures tube frequency to calculate fluid density.
In practice, Coriolis meters work well for liquids, slurries, gases, and viscous fluids. They do not need long straight pipe runs. They handle viscosity from 0.5 cP to over 100,000 cP. Typical accuracy is ±0.1 to ±0.2 percent of rate. Turndown ratio is often 20:1 or better.
How a Thermal Mass Flow Meter Works
A thermal mass flow meter uses two sensors in a pipe or insertion probe. One sensor is heated. The other sensor measures gas temperature. Gas flows past the heated sensor and removes heat. The cooling rate depends on gas mass velocity, gas type, and temperature. The electronics maintain a constant temperature difference between the sensors. The power needed to maintain that difference becomes the mass flow signal.
Thermal mass meters are common for compressed air, natural gas, biogas, and flare gas. They give direct mass flow in Nm3/h or kg/h. They work at low pressure and pipe sizes like DN50 to DN300. Insertion types are easy to install in large ducts. Most engineers specify thermal mass meters for gas only, not liquid.
Signal Outputs and Process Data
Most Silver Instruments mass flow meters provide 4-20 mA HART, pulse, RS485 Modbus, or digital output. The 4-20 mA signal often maps directly to mass flow. The pulse output maps total mass. Engineers can also read density, temperature, and batch totals from the same Coriolis transmitter. The display shows simultaneous values in kg/h, kg total, °C, and kg/m3.
The transmitter reads tube temperature with a PT100 sensor. This value is used for internal temperature compensation. ATEX Zone 1 and Zone 2 options are available for hazardous areas. Housing can be aluminum or stainless steel. Process connections include flanges, tri-clamp, threaded, and sanitary types. F
_600x400.jpg)
Recommended Silver Instruments Models
For liquid mass flow from 50 kg/h to 500,000 kg/h, the Silver Instruments CMF series Coriolis mass flow meter covers DN15 to DN150. It is a direct replacement for many mechanical flow meters in batch and dosing systems. A biodiesel plant in Vietnam uses the CMF-DN25 model for methanol dosing at 1,200 kg/h. The meter reports mass flow and density to the PLC over RS485. A dairy plant in New Zealand uses the CMF-DN40 model for cream batching at 8,000 kg/h.
For gas mass flow in compressed air and natural gas, the Silver Instruments TMF series thermal mass flow meter works in pipe sizes DN50 to DN300 or insertion type for large ducts. It measures gas flow from 0.5 Nm3/h to 3,000 Nm3/h. A water treatment plant in the Philippines uses the TMF insertion type on aeration air lines. The output is 4-20 mA HART to the control room.
If your fluid has low conductivity below 5 µS/cm, skip the electromagnetic meter and choose a Coriolis mass flow meter. If you need low cost gas volume, use a vortex flow meter. But for mass measurement and custody transfer, choose Coriolis or thermal mass.
How to Request a Quote
Send us your pressure in bar, temperature in °C, pipe size in DN, and flow range in kg/h or Nm3/h. Include your fluid name and viscosity if possible. Our engineers will recommend a model and return a quote within 24 hours.
Contact Silver Automation Instruments today.
Tel: +86-25-68650347
Whatsapp: +86-25-52155837
WeChat: +86 15365082610
Website: flow-meter.com.au
FAQ: 5 Questions Engineers Ask
Q: Can a Coriolis mass flow meter measure gas?
A: Yes. Coriolis meters measure gas, liquid, and slurry. Use a smaller tube size for gas to improve sensitivity. Provide gas density and pressure in your inquiry.
Q: Do thermal mass flow meters work on liquid?
A: No. Thermal mass meters are for gas only. Use a Coriolis mass flow meter for liquid mass flow.
Q: What is the typical accuracy of a mass flow meter?
A: A Coriolis meter often reaches ±0.1 to ±0.2 percent of rate for liquids. A thermal mass meter typically reaches ±1 to ±2 percent of full scale for gas.
Q: Do I need straight pipe runs?
A: Coriolis meters do not need long straight pipe runs. Thermal mass meters need a straight run of 10 to 20 pipe diameters for best accuracy.
Q: What output signals do Silver Instruments mass flow meters support?
A: Standard outputs include 4-20 mA HART, pulse, and RS485 Modbus. ATEX Zone 1 and Zone 2 options are available.
Silver Automation Instruments supplies mass flow meters to customers in Southeast Asia, Oceania, Latin America, Africa, and the Middle East. We ship from our factory with calibration certificates and English manuals.
