Steam Flow Meter Sizing: Vortex and DP Solutions for Accurate Energy Audits
Quick Answer: For saturated steam below 25 bar in DN15 to DN300 lines, an inline vortex flow meter gives the best combination of turndown, accuracy, and low maintenance for energy audits. For superheated steam above 25 bar or large lines, a differential pressure flow meter with an orifice plate or cone element is the reliable choice. Silver Instruments supplies both types and returns a sizing sheet from your pressure, temperature, pipe size, and flow range.
Why Steam Flow Meter Sizing Directly Affects Energy Audit Accuracy
Steam flow measurement is not a one size fits all task. A meter sized for 10 ton/h will not read correctly at 1 ton/h. Energy audit teams need repeatable data across the full load range. If the meter loses accuracy at low flow, the audit underreports or overreports steam consumption.
We have seen this on customer sites many times. A food processing plant in Vietnam installed a vortex meter sized only for peak load. At night, the steam load dropped to 12 percent of the full scale. The meter output became unstable and the energy audit data was rejected.
Vortex Flow Meter Sizing for Saturated Steam
Vortex meters are the first choice for saturated steam from 1 to 25 bar. The sizing logic starts with the pipe size, steam pressure, temperature, and minimum and maximum flow rate. For a DN50 pipe at 8 bar and 175 degrees Celsius, a vortex meter can measure from about 40 kg/h to 900 kg/h depending on the meter body and transmitter.
Select the meter size based on the minimum flow, not only the pipe size. Many engineers use a DN80 meter for a DN80 pipe. But if the minimum steam flow is 30 kg/h, a DN50 meter with pipe reducers gives a better signal. The velocity at the sensor must stay above the low flow cut off.
Endress Hauser steam flow meter sizing uses similar velocity ranges for vortex devices. The Prowirl series and comparable Silver Instruments vortex meters need a minimum Reynolds number and a minimum operating density. We often quote a DN40 or DN50 inline vortex meter for small boilers and a DN100 or DN150 wafer meter for larger distribution lines.
DP Flow Meter Sizing for High Pressure and Superheated Steam

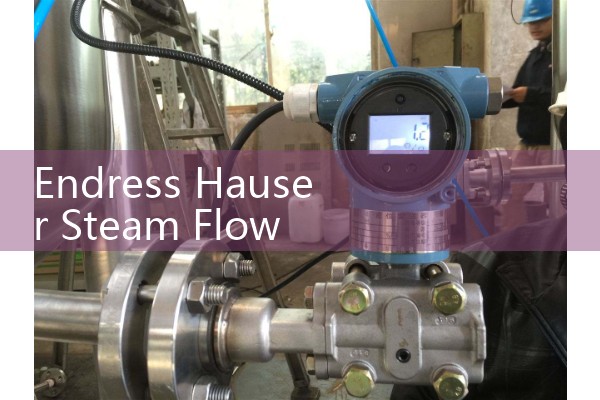

Differential pressure flow meters still hold a strong position for steam above 25 bar or superheated steam above 300 degrees Celsius. A DP setup with an orifice plate, nozzle, or cone element handles high temperatures and high pressures without a problem. The DP transmitter outputs a 4-20 mA HART signal and works with a flow computer or energy calculator.
DP sizing needs the exact operating density, pipe internal diameter, orifice bore, and beta ratio. The permanent pressure loss is higher than a vortex meter but DP is predictable. We have supplied DP steam metering packages for palm oil refineries in Malaysia and for chemical plants in Saudi Arabia. The typical turndown is 4 to 1 or 8 to 1 with a high range DP transmitter.
When to Choose Vortex vs DP for Steam Energy Audits
Use a vortex meter when the steam pressure stays below 25 bar, the pipe size is under DN300, and the flow turndown is 10 to 1 or better. Use a DP meter when the steam is superheated, the line size exceeds DN300, or the plant already has orifice flanges and a differential pressure transmitter.
Here is the thing. A vortex meter is easier to install because it has no impulse lines. A DP meter needs impulse lines, condensate pots, and a monitoring routine. In practice, most steam audit projects in Southeast Asia pick vortex for small and medium lines. Large utility boilers in the Middle East still use DP due to high pressure ratings.
Installation Notes for Steam Flow Meters in Energy Audit Projects
Vortex meters need 15 DN upstream and 5 DN downstream straight run for most models. DP meters need 20 DN upstream depending on the primary element. Condensate taps must be level for horizontal steam lines. The transmitter must be mounted below the pipe for steam service so that the impulse lines stay filled with condensate.
For outdoor installations in the Middle East, use a sunshade and a remote transmitter if the ambient temperat
What Information Silver Instruments Needs for Steam Meter Sizing
Send us the steam pressure in bar, the steam temperature in degrees Celsius, the pipe size in DN, the minimum and maximum flow rate in kg/h, and the installation type inline or insertion. We also ask if the fluid is saturated or superheated. For DP sizing, we ask for the pipe schedule and the upstream and downstream straight run available.
Our engineers return a sizing sheet with the recommended meter model, the pressure loss, the accuracy at minimum flow, and the quoted price. We support flow computer setup, PT100 temperature input for heat metering, and Modbus or 4-20 mA HART outputs. ATEX Zone 1 certified housings are available for chemical and oil and gas sites.
Common Steam Flow Meter Sizing Mistakes
One mistake is sizing only for maximum flow. Another is ignoring wet steam. Wet steam damages a vortex meter bluff body and changes the density calculation for DP meters. A third mistake is using a compressed air flow meter for steam service because the temperature rating is too low.
Most engineers skip the low flow check. That is the worst part. If the minimum flow velocity is below 0.5 m/s for many vortex meters, the reading drops to zero. An energy audit then sees phantom losses. We saw this last year at a textile plant in Bangladesh where a DN100 meter was installed on a DN100 pipe but the night load fell to 0.8 m/s. The audit data showed zero consumption for three hours while the boiler was still firing.
Silver Instruments Product Range for Steam Flow Measurement
Silver Automation Instruments supplies inline vortex steam flow meters with integrated temperature and pressure compensation. The line covers DN15 to DN300 for saturated steam and optional high temperature versions for superheated steam up to 350 degrees Celsius. The transmitter outputs 4-20 mA HART, pulse, and RS485 Modbus.
For DP flow measurement, we supply orifice plate assemblies, cone flow meters, and multi-variable differential pressure transmitters. The multi-variable transmitter measures differential pressure, line pressure, and temperature. The flow computer calculates mass flow and totalized energy in GJ or kg.
FAQ: Steam Flow Meter Sizing and Energy Audits
What is the best flow meter for saturated steam in a small boiler?
A DN40 or DN50 inline vortex meter with integrated temperature and pressure compensation is the most practical choice. It covers the 1 bar to 16 bar range and provides a direct mass flow or energy output when paired with a flow computer.
Can a vortex flow meter measure superheated steam?
Yes, if the temperature stays below 350 degrees Celsius on standard models. For higher temperatures up to 450 degrees Celsius, we offer a high temperature version with a remote transmitter and special sensor welding.
Which meter has lower pressure loss, vortex or DP?
A vortex meter normally has lower permanent pressure loss than an orifice plate DP system. A cone DP element reduces the pressure loss compared to an orifice plate but still has more loss than a vortex meter in most sizes.
What data do I need to send for steam flow meter sizing?
Send the steam pressure, steam temperature, pipe size, minimum and maximum flow rate, and the pipe schedule. We can then calculate the correct meter size, the expected pressure loss, and the low flow cut off.
How does Silver Instruments compare to Endress Hauser for steam flow meter sizing?
Silver Instruments offers a lower cost alternative with similar accuracy and faster delivery to Southeast Asia, the Middle East, and Africa. We provide a sizing sheet with every quote so you can compare the proposed model against an Endress Hauser or any other meter.
Send us your pressure (bar), temperature (°C), pipe size (DN), and flow range. Contact Silver Automation Instruments at Tel: +86-25-68650347, WhatsApp: +86-25-52155837, or WeChat: +86 15365082610. We reply with a steam flow meter sizing and quote within one business day.
