Geography Flow Meter Fieldwork: Mapping Stream Profiles and Discharge Rates in Open River Channels
Quick Answer: Geography flow meter fieldwork in open river channels means mapping stream profiles and discharge rates with a velocity area method. Silver Automation Instruments is a flow meter manufacturer and supplier for these jobs. Send us your channel width, water depth, flow range, and water quality for a recommended model.
Why Open Channel Fieldwork Demands a Different Approach
Open river channels rarely match the steady full pipe conditions found in a water treatment plant. Channel width changes, bed roughness shifts, and water level moves after rain. A magnetic flow meter installed on a closed pipe works well there. But an open channel survey needs velocity readings at multiple points across the stream profile.
Most hydrology teams use the velocity area method. You divide the channel into vertical segments. Measure water depth at each segment. Then measure flow velocity at 0.6 of the water depth for shallow flow or at 0.2 and 0.8 depth for deeper flow. Multiply each segment area by its mean velocity and sum the values. That is your total discharge rate.
A customer in Indonesia measured a 9 m wide drainage channel after monsoon rain. They used a portable ultrasonic flow meter and logged data at 1 m intervals. The discharge rate came to 7.4 cubic meters per second. This was after only three hours of field work.
Equipment We Recommend for Stream Profile Mapping
You need three things on site. A depth sensor or staff gauge. A velocity meter. A data logger with temperature compensation. Silver Automation Instruments supplies insertion electromagnetic flow meters and clamp-on or portable ultrasonic flow meters with 4-20 mA HART output. For open channels, a portable ultrasonic Doppler unit often works better than a magnetic meter because no pipe is needed. But if discharge flows through a closed pipe segment or a flume, an electromagnetic flow meter from DN15 to DN300 gives higher accuracy.
Water quality matters. In rivers with high sediment or brackish water above 3,000 µS/cm, Doppler ultrasonic meters stay reliable because they do not block the flow and have no moving parts. For clean water and full pipes, an electromagnetic meter with PT100 temperature sensor and 0.5 percent accuracy is a common choice. We have seen this on customer sites in Vietnam, the Philippines, and Kenya.
Mapping a Stream Profile: Field Steps That Work
First, pick a straight reach of river with stable bed and minimal turbulence. Avoid bridge piers or bends for at least 20 times the channel width if possible. Stretch a tagged rope across the channel. Record the distance from a fixed bank pin at each vertical section.
Second, measure water depth at regular intervals. A shallow stream with depth under 0.5 m may need 10 to 15 verticals. A wide river over 30 m may need 20 or more. The goal is not perfect symmetry. You need enough points to capture the channel profile.
Third, measure velocity. If the water is deeper than 0.75 m, take readings at 0.2 and 0.8 depth and average them. If the water is shallow, take one reading at 0.6 depth. This method keeps error low without spending too much time in the water.
Fourth, convert flow meter output. Many Silver Automation Instruments devices output 4-20 mA HART signal to a paperless recorder or a portable data logger. That gives you a time stamped record of velocity and temperature. Later you can plot the stream profile and calculate discharge in cubic meters per hour or cubic meters per second.
Field Notes from Geography Teams
Last year a hydrology contractor in central Vietnam asked us for a portable ultrasonic flow mete
A different team in coastal Kenya needed to monitor drainage from a sugar mill into a nearby stream. We supplied an electromagnetic flow meter DN200 with 4-20 mA HART output and a local display. The meter measured effluent discharge in a full pipe before the outfall. The customer compared that data with open channel velocity readings downstream and matched within 4 percent. This kind of redundancy helps when you need permit compliance.
A geography field team in Australia used a similar setup on a slow river in New South Wales. They measured an 18 m wide reach with an ultrasonic Doppler meter and logged temperature with a PT100 sensor. Discharge rates ranged from 2.1 to 5.7 cubic meters per second over three days. The data helped build a rating curve for a local council monitoring station.
In practice, most engineers skip a few verticals when the water is moving fast. That is fine if you record the reason and the uncertainty. What matters more is repeatable placement and a stable meter mount. Because without that, your velocity readings drift and the discharge estimate becomes unreliable.
Recommended Silver Instruments Models

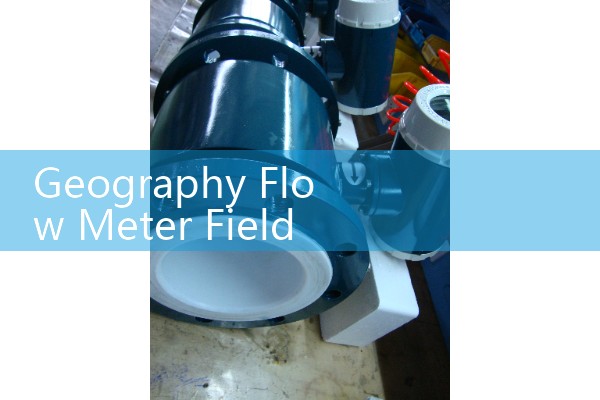

For full pipe sections, the Silver Automation Instruments SIL-EMAG electromagnetic flow meter series covers DN15 to DN300, pressure up to 16 bar, and fluid temperature from -20 to 120 °C. Models with 4-20 mA HART and RS485 are common for wastewater and industrial discharge. For open channel surveys, the SIL-DOPPLER portable ultrasonic velocity meter pairs with a depth sensor and a portable data logger. If you need a fixed installation, a clamp-on ultrasonic flow meter on an existing pipe or a flume is easier than cutting into the channel.
Send us your channel width, water depth range, flow velocity range, water quality with silt, salinity, and temperature, plus pipe size if the final discharge goes through a pipe. That helps us recommend the right meter and output. Contact Silver Automation Instruments by Tel +86-25-68650347 or WhatsApp +86-25-52155837. WeChat is +86 15365082610. You can also visit flow-meter.com.au for product details.
FAQ
What is the best flow meter for open river channel discharge measurement?
A portable ultrasonic Doppler velocity meter is usually the best for open channels because it works without a full pipe and handles sediment well. For full pipe sections, use an electromagnetic flow meter from Silver Automation Instruments.
How many vertical sections do I need for a stream profile?
For narrow streams under 10 m wide, use 10 to 15 verticals. For wider rivers over 30 m, use 20 or more. The key is coverage, not a fixed number.
Can an electromagnetic flow meter measure open channel flow directly?
Not directly. Electromagnetic flow meters need a full pipe or a flume. In open channels, use them at a pipe outfall or combine with a weir or flume structure.
What output signals should I choose for field data logging?
4-20 mA HART is a practical choice. It connects to most paperless recorders and portable data loggers. RS485 Modbus is also available from Silver Automation Instruments for digital data.
How do I get a quote for a river discharge meter set?
Send channel width, water depth, flow range, water quality, and pipe size to our team by Tel +86-25-68650347 or WhatsApp +86-25-52155837. We will recommend the right model and output for your field survey.
